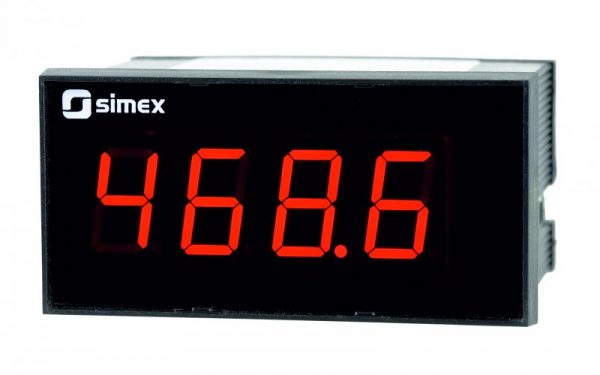

SWE-94-U
The SWE-94-U meter is equipped with one universal input: 0-20 mA, 0-10V, 0-150 mV, RTD (Pt 100/500/1000) or thermocouple (K, S, J, T, N, R, B, E). Temperature of cold ends is compensated automatically. RTD and TC inputs are fully linearised. It is allowed to use only one input at the same time. SWE-94-U allows user to select a characteristic conversion of several kinds: linear, square, square root, user defined. The device is equipped with RS-485 / Modbus RTU communication interface. The device can be configured via IR remote controller or optionally by PC via RS-485 interface. Over more communication interface RS-485 enables data transmission in any monitoring system equipped witch Modbus RTU protocol. The meter can be ordered in 3 power supply versions.
Parameters
| Measurement range | current: 0-20 mA or 4-20 mA, voltage 0-5 V, 1-5V, 0-10V or 2-10V, milivoltage 0-60 mV, 0-75 mV, 0-100 mV or 0-150 mV; thermoresistance: Pt100, Pt500, Pt1000, measuring range -100°C ÷ 600°C; thermocouple K: -200°C ÷ +1370°C; S: -50°C ÷ +1768°C; J: -210°C ÷ +1200°C; T: -200°C ÷ +400°C; N: -200°C ÷ +1300°C; R: -50°C ÷ +1768°C; B: +250°C ÷ +1820°C; E: -200°C ÷ +1000°C |
|---|---|
| Power consumption | for 110V AC and 230V AC: max. 1,5 VA; for 24V DC: max. 1 W |
| Input | universal (programmable): current; voltage; milivoltage; thermoresistance or thermocouple type K, S, J, T, N, R, B, E |
| Power supply | 110V AC ± 10% separated, 230V AC ± 10% separated or 24V DC (10V ÷ 30V DC) not separated from measurement input |
| Stability | 50 ppm/°C |
| Communication interface | RS-485, 8N1 and 8N2, 1200 bit/s ÷ 115200 bit/s, Modbus RTU (not galvanically isolated from measuring inputs) |
| Displayed values range | -999 ÷ 9999 + decimal point |
| Storage temperature | -10°C ÷ +70°C (standard), -20°C ÷ +70°C (depending on option) |
| Operating temperature | 0°C ÷ +50°C (standard); -20°C ÷ +50°C (option) |
| Accuracy | 0.1% @25°C (inputs: current, voltage, milivoltage, thermoresistance, thermo-couple K, J, E); 0.2% @ 25°C (thermocouple N), 0.5% @25°C (thermocouple S, T, R, B) |
| Case material | NORYL UL94V-0 |
| Case dimensions | 96 x 48 x 72 mm |
| Case | panel mounting |
| Protection class | IP 65 (front side when an optional seal is installed); IP 40 (front side); IP 20 (case and connection clips) |
| Display | LED, red, 4 x 20 mm high, brightness adjustable in 8 steps |
| Weight | 205 g max. |
| Panel cut-out dimensions | 91 x 45 mm |
| Board thickness | max. 6 mm |
| Installation depth | min. 88 mm |
