SRS-2/4-Z45

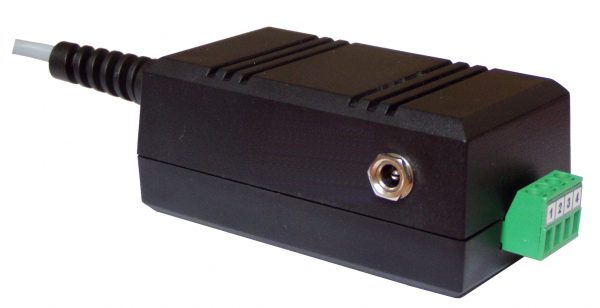

The SRS-2/4-Z45 converter module is used to connect MASTER devices with a RS-232 port to a RS-485 bus. The module supports devices, which control Tx switching using the RTS signal and devices, which do not control Tx switching using the RTS signal (Tx switching is then fully automatic). For example, a suitably programmed PC computer can function as the system MASTER device.
Parameters
| Power consumption | typical 0,65 VA; max. 1,6 VA |
|---|---|
| Humidity | 5% up to 90% without condensation |
| Power supply | 16 – 30 V DC |
| RS-232 interface port | 1 x 9 PIN Canon (RS 232), cable, length about 1.3 m |
| Breakdown voltage | separation between RS-485 interface and RS-232 signals |
| Transmission parameters | 2400 – 115200/8/1/N (RTS line control disabled); 1200 – 115200/8/1/N (RTS line control enabled) |
| Storage temperature | -10°C ÷ +70°C or -20°C ÷ +70°C (with option 08) |
| Operating temperature | 0°C ÷ +50°C (standard), -20°C ÷ +50°C (option) |
| Case dimensions | 40 x 55 x 100 mm |
| Weight | 170 g |
| Transmitter deactivation delay time | typically 1.5 characters (not applicable to RTS line control) |
