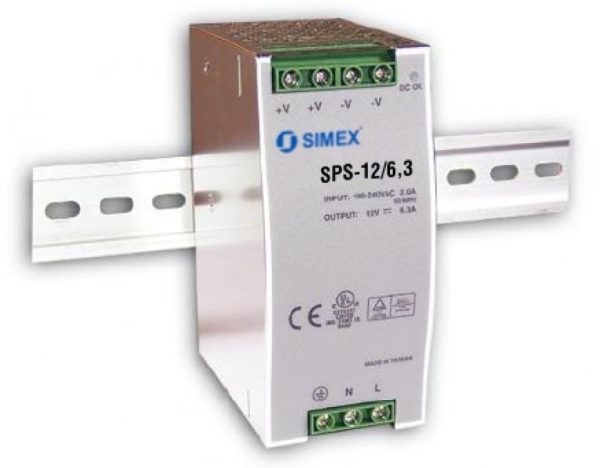

SPS-12/6,3
Single output industrial DIN rail power supply 12V
Parameters
Output voltage range | 12 V |
---|---|
Rated current | 6,3 A |
Rated power | 76 W |
Input voltage range | 85 ~ 264 VAC 120 ~ 370 VDC |
Voltage tolerance | ± 2% |
Efficiency | 76% |
Storage temperature | -20°C ~ +85°C |
Weight | 0,6 kg |
Operating temperature | -10°C ~ +60°C |
Rise time | 1000ms, 60ms / 230VAC, 1800ms, 60ms / 115VAC |
Hold up time | 60ms / 230VAC, 12ms / 115VAC |
Case dimensions | 55,5x125x100 mm |
Inrush current | COLD START 20A/115VAC 40A/230VAC |
