SCK-11

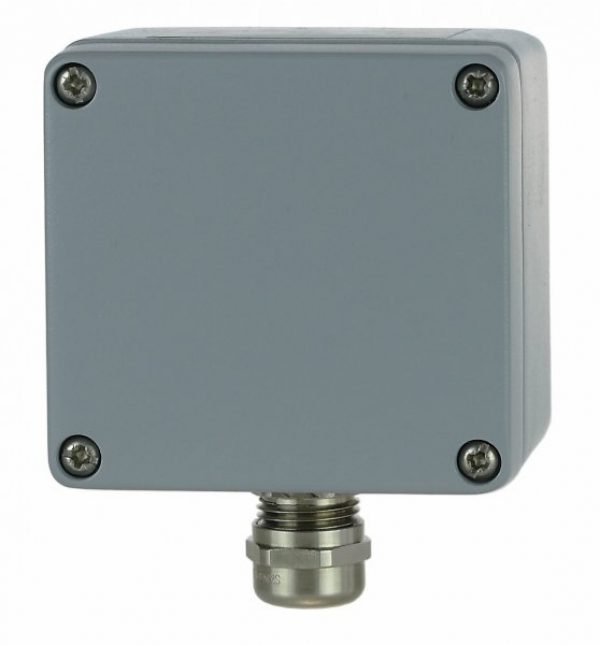

The dual axis inclinometer module SCK-11 was designed to stationary measurements of inclinations of two orthogonal axes in relation to earth. Recommended range of measured angles maintains from -70 to +70 deg. Due storing of new scaling values to internal registers it is possible to change measurement unit and resolution to any other linear. Build in offset registers allows user to measure relative angles and self zeroing after mounting. In addition to two registers containing information about SCK-11 installation plane angle relative to the earth (two angles with the offset function), threre are available additional two records containing information on the accelerations in the same axes, what makes measurement of transducer movement more precision.
Parameters
| Power supply | 10 – 36V DC |
|---|---|
| Current consumption | 10 mA / 24V DC |
| Measurement range | ±70 deg. in relation to earth |
| Vibration frequency | 10 Hz |
| Communication interface | RS-485 / Modbus RTU |
| Resolution | from 0,001 to 1, user configured |
| Operating temperature | recommended -30°C to +60°C; max. -40°C to +85°C |
| Accuracy | ±30 deg. (better than 0,2%; max. error 0,05 deg. @25°C); ±70 deg. (better than 0,5%; max. error 0,2 deg. @25°C) |
| Case dimensions | 79 x 74 x 58 mm |
| Compensation temperature | -40°C ÷ +85°C |
| Case material | aluminium |
| Protection class | IP 67 |
| Weight | 350 g |
| Gravity measurement range | ±1,5G (1G = gravitational acceleration of earth) |
| Nonlinearity | ±0,1% |
| Measurement channels | two |
| Acceleration unit and resolution | 0,001 G |
| Typical applications | industry and farming, position control equipement, measurement systems of lifts etc. |
